Solar POol heating

South pitch on North facing roof

South pitch on North facing roof

South pitch on North facing roof

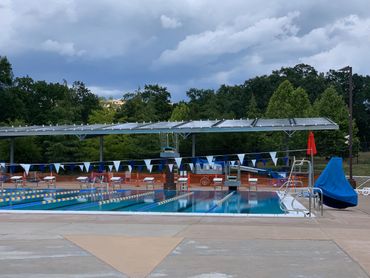

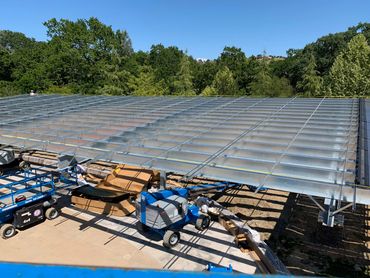

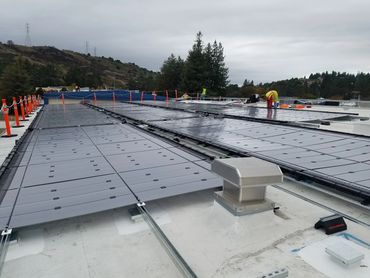

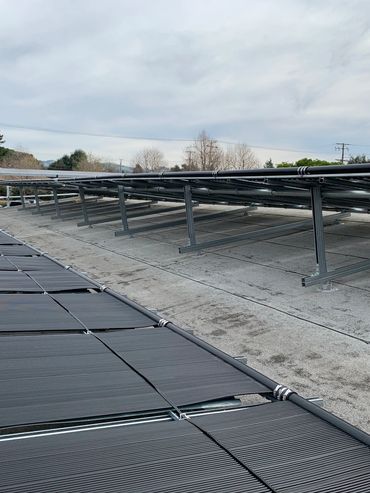

The Aquatherm brand of panels offers high energy production and ability to cool the pool at night. For commercial pools, depending on the roof type, they  can be roof racked and/or pitched

or mounted directly to the roof.

Attention to detail

South pitch on North facing roof

South pitch on North facing roof

Each bank of panels is flow measured and controlled. Since the panels expand and contract with temperature, a sliding expansion coupling is used to protect the panels and allow for this movement.

Two stage solar startup

South pitch on North facing roof

Extra Drain-Back protection

Two temperature sensors are used in my systems. One for Pre-Solar operation and the other for "Maintained" Solar operation. Additionally, each sensor has a pre-installed backup sensor.

Extra Drain-Back protection

Extra Drain-Back protection

Extra Drain-Back protection

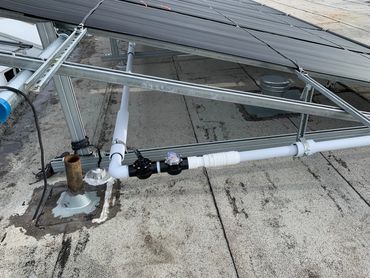

For "Drain-back", there is a check valve in between each bank to allow the second bank to drain-back into the first and then back into the pool.

System pressure protection

Extra Drain-Back protection

System pressure protection

Should the solar panels be full of water and not operating (Stand-by Mode), a pressure relief valve is used to prevent the panels and connections from bursting.

Panels need to be cleaned

Extra Drain-Back protection

System pressure protection

Dirt and debris buildup on the panels decreases their energy output. Hose bibbs are installed on the roof for easy cleaning of the panels.

Photo Gallery - Commercial

Photo Gallery - commercial
